Non Gaussian Distribution 445nm 100mW Blue Line Laser Module

 Whenever line measuring work is processing continuously and also not easy to reach with manual line printing device, it is a very nice conversion for users to apply an advanced laser diode tech applying device of 445nm 100mW blue line laser module. It is generating the most powerful blue laser source directly from inner 445nm blue laser diode. Only after its professional equipment with the best quality separate crystal lens and good thermal emitting system, this industrial stabilized laser line generator achieves superior nice thermal stabilization and highly stable blue line alignment in continuous use.

This 445nm 100mW blue line laser module is an industrial stabilized laser device. It should have to continue for quite long time, and maintain good laser beam stability in long time use. Not simply adopting alkaline battery power source, but selecting an external AC/DC adapter as its electric power source, this laser line generator is keeping work with continuous blue laser source and extremely clear blue line alignment in different occasions. When it is designing with extending electric wires for both blue laser and DC power source, it is not only allowing freely installed distance of 3 meters, but also ensuring highly stable line alignment under increasing temperature.

In order to get highly clear line alignment for all application fields, 445nm 100mW blue line laser module is adopting the most qualified separate crystal lens. It is projecting non Gaussian distribution blue laser beam, and up to 85% uniformity blue reference line in distance. It is performing much better than formal plastic coated lens or glass coated lens, also getting even brighter and finer blue reference line in distance. When this laser line generator gets wide range fan angles within 10 degree to 93 degree, after projection of high fineness and high brightness blue line from middle part towards both ends, it achieves quite satisfied line positioning result for all precise device manufacturing works.

Employing a quite nice accessory part of laser alignment mounting bracket , 445nm 100mW blue line laser module enables convenient installation onto any other machine or device. It is just making noncontact and no barrier line alignment onto any vertical or horizontal surface. When users are making quite easy screw of adjustable focus optic lens, after immediate blue laser light concentration, this alignment laser achieves the finest line alignment in distance. At the same time, after high attention to thermal energy hurt to eyes and correct wearing of laser safety goggles, this high power laser line generator achieves easy and free measurement in all occasions perfectly.

Separate Crystal Lens 30mW 635nm Red Laser Line Generator

In serious need of the most accurate and fine enough line alignment at quite long work distance, not relying on simple square meter or blocking board, it would be much better solution to apply a 30mW 635nm red laser line generator. It is an industrial stabilized laser line aligning tool. When 635nm red laser module makes good use of the best quality separate crystal lens and inner thermal emitting system inside durable aluminum alloy housing tube, it is able to work with the highest efficiency red laser beam emission, and highly clear red line alignment at long work distance and high lighting occasions etc.

This 30mW 635nm red laser line generator is in need to make long time continuous line alignment work. It is adopting import 635nm red laser diode as beam emitting source. Under operation with at least 3 times brighter red laser light emission than formal 650nm red laser with the same output power, it is workable for even longer distance and higher brightness red line alignment in continuous use. When 635nm red laser module gets the lowest laser beam divergence of less than 1mard and special TME00 laser beam mode, it is just keeping work with extremely fine and straight red line alignment at long distance.

According to quite special use of qualified separate crystal lens, not the same as formal plastic coated lens or glass coated lens, 30mW 635nm red laser line generator is always projecting even finer and brighter red reference line for both long distance and long time use. It should have to work with clear line indication for multiple application fields. According to basic measurement and experiment of technical data, only after correct selection of Powell lens fan angle, this 635nm red line laser is just making extremely fine line indication within the maximum distance of 25 meters and multiple application fields etc.

Whatever kind of working surface it is pointing, after quite easy installation and adjustment of both laser beam focus and laser line fineness, 30mW 635nm red laser line generator makes sure of the most satisfied line positioning result. In addition, with the assistance of a laser alignment mounting bracket and special use of AC/DC adapter, this alignment laser enables the most convenient installation and easy red line projection continuously. Within continuous red laser line alignment of 8 to 10 hours, after high attention to any thermal energy hurt to eyes and correct wearing of laser safety goggles, it makes sure of secured and no mistake line alignment in distance constantly.

Separate Crystal Lens 5mW 532nm Green Line Laser Module



Whenever line alignment work is processing at much close distance, while still getting special need of highly precise line alignment, it is very nice experience to make use of a 5mW 532nm green line laser module. It is always projecting highly visible green laser beam from middle wavelength of 532nm green DPSS laser system. For the most important of all, after advance use of the best quality separate crystal lens with wide fan angels and basic use of inner cooling system, this durable structure made laser line generator always makes sure of highly visible green laser beam and highly fine green line alignment within close distance effectively.

Designing with the best quality separate crystal lens, not the same as any other formal glass coated lens or plastic coated lens, 5mW 532nm green line laser module would be working with non Gaussian distribution green laser beam, and highly fine green line alignment in use. It is achieving up to 85% uniformity green reference line, which is also keeping work with even more visible and brighter laser light emission than other formal optic lens. When users are making basic measurement and experiment of technical data, after correct selection of optic lens degree, it will make highly fine and straight green line indication for all kinds of precise device manufacturing works.

According to special use of AC/DC adapter, designing with extending electric wires for both 5mW 532nm green line laser module and DC input power supply, it just enables freely installed distance of 3 meters and convenient green reference line projection onto any vertical or horizontal surface. It gets much better performance than simple alkaline battery power source made green laser pointer. After getting even larger space for inner module tube cooling down, this laser line generator just achieves superior nice thermal emitting and extremely stable green line alignment in long time use.

Whatever kind of working surface it is pointing, without any barrier caused by hard reaching, corner other complex working environments, 5mW 532nm non Gaussian distribution green line lasermodule is allowing the most convenient installation, and easy line indication onto any vertical or horizontal surface. In addition, after quite easy screw of adjustable focus optic lens, the most intense green laser beam is converting into highly fine green reference line, this industrial alignment laser has just assured the highest level of accuracy green line alignment in all occasions perfectly.

Convenient Pointing 515nm Gaussian Beam Green Laser Line Generator

 In order to make the most satisfied line alignment result constantly, especially in occasion of long work distance and other complex working environments, it is great chance to have a try of advanced 515nm green laser diode. Laser tech engineer is making continuous technical innovation of 515nm green laser diode tech and special use of qualified optic lens with different fan angles, 515nm green laser line generator is making highly clear and easy forest green line indication onto various working surfaces. Only according to its proper installation and adjustment of beam focus, it achieves the most precise line indication onto multiple surfaces.

Not the same as any other manual line printing device, 515nm green laser line generator just assures the most convenient use in any precise device manufacturing work fields. It is adopting an external AC/DC adapter as electric power source. Different from a simple laser pointer, it is not only workable with continuous forest green laser beam and green line projection, but also keeping stable and reliable performance under increasing temperature tube. Designing with extending electric wires for both 515nm green laser module and DC power source, within freely installed distance of 3 meters, it is always making convenient and no barrier forest green line alignment in distance easily.

Whatever kind of working surface it is pointing, in order to avoid any possibility of tube burning out or damage, 515nm green laser line generator has passed through quite strict laser beam stability tests before its flowing into laser market. According to a series of beam stability tests up to 24 hours and quite special use of a glass window in front of laser beam aperture, 515nm forest green line laser is workable with excellent laser light cycling use, and highly clear forest green line indication under any moisture or dust working occasion etc.

On basis of real work distance, line length and line fineness, 515nm green laser line generator should pass through basic measurement and experiment of technical data, thus getting correct selection of output power and fan angles. Within the maximum line measuring distance of 25 meters, after quite easy screw of adjustable focus optic lens, this industrial alignment laser achieves highly fine and straight line indication. Whenever it is projecting the most powerful forest green laser beam and serious thermal energy hurt to human eyes, only after correct wearing of laser safety goggles, it makes sure of highly secured and easy line alignment on all raw material surfaces perfectly.

515nm 30mW Green Dot Laser Module Review

In any type of highly clear and accurate dot measurement, not workable at all to still rely seriously on simple laser pointer or other manual dot projecting tool. However, there is also never an end for laser tech engineer to develop a quite practically used device, such as a 515nm 30mW green dot laser module. It is emitting intense and highly bright forest green laser beam directly from 515nm green laser diode. On basis of its compact structure design and easy connects with an external AC/DC adapter, only after its proper installation and adjustment to correct position, it makes sure of highly precise and quick response forest green reference dot indication at long work distance.

The usual use of 515nm 30mW green dot laser module is always in need to make continuous dot alignment, but not simply used for temporary dot positioning works. It is an industrial stabilized device. Besides its basic use of inner metal heat sink cooling system, it is also getting important design part of import 515nm green laser diode inside durable aircraft used aluminum alloy housing tube. On condition that forest green laser alignment gets superior nice thermal conductivity, within wide range operating temperature and any other harsh working occasion, it is not affecting at all, but still generating the best quality forest green laser source emission and highly clear forest green dot alignment for both long distance and high lighting as well.

Any time 30mW 515nm green dot laser module makes easy connects with an external AC/DC adapter, it is able to work with immediate forest green reference dot indication in distance. Comparing with other formal laser module device, it is taking quite high thermal consumption. After correct selection of 9V 1000mA DC power supply, it is not providing continuous forest green dot projection, but also assuring highly stable performance under any occasion of overheating and over current in long time use.

Whatever kind of working surface it is pointing, including those hard reaching places, 30mW 515nm forest green dotlaser module enables convenient use under the assistance of laser alignment mounting bracket. Within the maximum installed distance of 3 meters, noncontact green alignment laser dot is also easy to reach any vertical or horizontal surface, and making quite satisfied dot measurement for laser medical therapy device, military targeting, lab experiment and other scientific research works etc. Whenever compact size green laser gets proper installation and adjustment of beam focus, after correct wearing of 515nm wavelength preventing laser safety glasses, it achieves highly clear and accurate dot measurement in all application fields successfully.

APC Driving 515nm 50mW Forest Green Dot Laser Alignment

 In various working occasions of the most precise and accurate dot projection at long work distance than formal hand reaching, it is not an easy job to get ideal dot aligning accuracy under selecting a professional measuring tool of 50mW 515nm forest green line laser alignment. It projects forest green laser beam directly from 515nm green laser diode. When it is requiring to work with highly stable and reliable forest green laser beam and green laser dot from laser beam aperture, it is just designing with good thermal emitting system. Only if compact size 515nm green laser module gets proper installation and adjustment of beam focus, it makes high precision forest green dot projection in distance.

The genuine dot measuring work with 515nm 50mW forest green dot laser alignment is pointing for quite long time. A simple green laser pointer is only used for temporary dot positioning work, while not efficient enough to make constant dot measuring work for all kinds of precise device manufacturing works. As a result, according to basic use of inner metal heat sink cooling system inside durable aircraft used aluminum alloy housing tube, under operation with superior nice thermal conductivity and wide range operating temperature stabilization, this 515nm green laser module is just working with highly stable and reliable green reference dot projection in continuous use.

According to advanced use of high quality glass coated lens, whatever kind of working surface it is pointing, 515nm 50mW forest green dot laser alignment ensures high transmittance forest green laser beam emission, and extremely clear forest green dot projection at quite long work distance. It is not as bright as 532nm green DPSS laser, however, this direct diode emission 515nm green laser module gets proper use of 9V 1000mA 1000mA DC power supply, it is always getting even more powerful green laser light emission and more stable forest green dot positioning result in continuous use. This high thermal consumption laser device just allows continuous work within 8 to 10 hours per day, and up to 85% laser beam stability in use.

When 515nm 50mW forest green dot laser alignment gets advanced design of APC, ACC driving circuit board, even though serious thermal energy projecting is causing increasing temperature, however, it is still keeping constant output power supply, and the most stable green reference dot projection. After quite easy screw of adjustable focus optic lens, this industrial alignment laser enables high speed forest green laser light concentration and the most precise forest green dot projection. Any time users are paying high attention to thermal energy hurt to human eyes, and wearing proper 515nm wavelength preventing laser safety goggles, it achieves safe and highly precise dot positioning result for all application fields.

Long Time Pointed 100mW 650nm Red Laser Diode Module

 Whenever users are trying to make quite easy and immediate dot alignment, even though it is projecting at quite long work distance and other complex working environments, it is not an easy job to only rely on manual labor force input and other simple red laser pointer. Whenever users are applying a 100mW 650nm red laser diode module, not limited by quite close distance or prior dot positioning work, high power red dot laser makes quick and high speed red dot projection onto multiple working surfaces. Any time compact size red laser gets proper installation and adjustment of both beam focus and dot aligning direction, it ensures high precision dot alignment onto multiple surfaces.

This 100mW 650nm red laser diode module is an industrial stabilized laser device. Before its flowing into laser market, on consideration with good thermal stabilization, it makes good use of internal metal heat sink cooling system inside durable aircraft used aluminum alloy housing tube. Within wide range operating temperature of -10 degree to 45 degree Celsius, this high power red dot laser achieves superior nice thermal conductivity and extremely stable dot alignment, including any other harsh working occasion of mechanical moving or shocking etc. Any time compact size 26mm diameter red laser gets proper installation, it just makes high speed and easy dot indication onto any vertical or horizontal surface effectively.

Under operation with qualified glass coated lens and up to 24 hours aging preventing tests, only if 100mW 650nm red laser diode module gets proper use by skilled users or professionals, it is always keeping work with high transmittance red laser light emission, and highly clear red dot alignment in continuous use. In long time and long distance dot alignment works, without any affecting by moisture or dust, it is performing perfectly under multiple application fields. When it gets quite easy screw of adjustable focus optic lens, high power red alignment laser gets immediate red laser light concentration, and the most precise dot alignment in multiple fields effectively.

Any time 100mW 650nm red laser diode module gets import design of APC, ACC driving circuit board, even though it is projecting serous increasing temperature of laser tube, however, it is still keeping work with constant output power and electric current supply. In continuous alignment laser dot projection within 8 to 10 hours, only if it gets superior nice laser tube cooling down, it is achieving good laser light cycling use and the most precise dot indication. Whenever users are paying high attention to thermal energy hurt to eyes, only after basic use of 650nm wavelength preventing laser safety goggles and proper installation, it achieves highly precise and no barrier dot alignment onto all working surfaces perfectly.

APC Driving Circuit 100mW Economy Red Dot Laser Alignment

 In some of high precision dot measuring work fields, even though it is quite complex working occasion where users are trying to work, it is always a quite easy and efficient solution to make good use of a 100mW economy red dot laser alignment. It projects moderate brightness red laser light directly from 650nm red laser diode. Usually 650nm red laser module makes good use of high quality optic lens and internal thermal emitting system, this industrial stabilized red laser achieves superior nice thermal emitting and increasing stability red dot projection in continuous use.

This 100mW economy red dot laser alignment applies import 650nm red laser diode as beam emitting source. Owing to its long developing history and quite mature laser diode tech application, after production into an industrial stabilized dot measuring tool, it is not only getting highly stable dot measuring result, but also getting the lowest production cost among all visible optical spectrums. When high power red laser module selects 26mm diameter aluminum alloy housing tube, after getting enough space for internal metal heat sink cooling system, it is not only workable with superior nice thermal conductivity, but also assuring the most stable red dot projection within continuous use of 8 to 10 hours per day.

The advanced use of high quality glass coated lens assures high transmittance red laser light emission, but also getting no appearance of laser light decay in continuous use. These 100mW economy red dot laser alignments is generating the best quality red laser light source, and extremely clear red reference dot projection at great distance of 25 meters and other formal lighting occasions etc. Whenever users are making quite easy screw of adjustable focus optic lens, this alignment laser enables immediate red laser light concentration and extremely clear red dot projection in distance.

The special design part of APC, ACC driving circuit board is always protecting 100mW economy red dot laser alignment from increasing temperature and any possibility of laser tube burning out or damage. In continuous red alignment laser dot projection, it is making no barrier and noncontact dot indication onto any vertical or horizontal surface, and achieving the most satisfied dot alignment for multiple application fields, including laser marking, laser engraving, military targeting and other high tech occasions. When users are aware of any thermal energy hurt to human eyes, after correct wearing of 650nm wavelength preventing laser safety goggles, this industrial stabilized high power red laser module makes sure of safe and clear dot measurement constantly.

Separate Crystal Lens 405nm 50mW Violet Laser Line Generator

 If users are getting special need of highly clear and accurate line alignment at long work distance, it is not realistic to only rely on prior line printing work. In order to make sure of high efficiency and high accuracy line alignment at various work distances, 405nm 50mW violet laser line generator is developing into a quite practically used industrial line measuring device. Whenever 405nm violet laser module gets proper installation and adjustment of beam focus and line targeting direction, it makes sure of extremely precise and quick response line alignment at great distance immediately.

Comparing with any other visible laser devices, 405nm 50mW violet laser line generator is not only projecting much weaker violet laser light, but also getting special line alignment solution for biochemical, military industry, optical memory, and spectroscopy etc. When it is employing import 405nm violet laser diode as beam emitting source, owing to its direct violet laser beam emission from laser beam aperture, this violet laser module is still adopting quite small size tube diameter of 16mm. The special use of durable aircraft used aluminum alloy housing tube makes perfect configuration with internal metal heat sink cooling system, which is able to work with extremely intense violet laser light and highly clear violet laser line alignment in distance.

Under operation with continuous violet line alignment for both great distance and long time use, 50mW 405nm violet laser line generator makes use of the best quality separate crystal lens. When violet laser line is pointing from laser beam aperture, it is generating non Gaussian distribution violet laser beam, and highly uniform violet reference line as high as 85%. When violet laser module is pointing at quite long work distance, it still keeps work with high brightness violet line projection from middle part towards both ends. Owing to quite strict laser beam stability tests up to 24 hours, only if it is operating by skilled users or professionals, it just maintains highly clear and no decay light violet line alignment in long time use.

Available with wide range fan angles of 10 degree to 93 degree, 405nm 50mW violet laser line generator is projecting different line length and line fineness at various work distances. After correct selection of fan angle and proper adjustment of laser beam focus optic lens, this industrial alignment laser makes sure of immediate violet laser light focusing and the finest violet line indication. At the same time, whenever users are paying high attention to thermal energy hurt to human eyes, only after proper wearing of laser safety goggles, high power violet line laser makes sure of safe and highly clear line measurement in all occasions.

635nm 50mW Glass Coated Lens Red Line Laser Module Review

 In all industrial and high tech line alignment work fields, in order to fine a quite practically and genuine used line alignment solution, it would be very nice solution to make advanced use of a 635nm red line laser module. It makes good use of import 635nm red laser diode and qualified glass coated lens with different fan angles, after quite easy use of an external electric powers source, it is just able to work with highly intense red laser beam emission and extremely clear red laser line alignment at great distance and high lighting occasions.

This 635nm 50mW red line laser module always enables convenient use. It adopts import 635nm 50mW red laser diode as beam emitting source. Different from a simple red laser pointer, it is always getting at least 40% improvement of laser beam stability in continuous use. Usually this laser line generator is requiring to make continuous line indication onto various targeting surfaces, only after basic use of metal heat sink cooling system inside durable metal housing tube, it is achieving superior nice thermal conductivity and extremely stable red laser line alignment within wide range operating temperature as well.

In order to avoid laser light decay or dim in continuous use, 635nm 50mW red line laser module makes advanced use of qualified glass coated lens. When it passes through up to 24 hours aging preventing and beam stability tests, under proper laser line alignment by skilled users and professionals, it is achieving good laser light cycling use and extremely clear red line projection in continuous use. When it gets correct measurement and experiment of red line length, line fineness and work distance, a correct output power and fan angle made red laser line generator makes no mistake line projection in distance.

Under operation with a laser alignment mounting bracket and extending electric wires for both 635nm 50mW red line laser module and DC power supply, it is assuring the most convenient line indication onto multiple targeting surfaces. When powerful red laser light and thermal energy are generating from laser beam aperture part, this alignment laser is not only making highly clear line indication at great distance, but also operating with correct wearing of laser safety goggles. In occasion that users are making easy adjustment of laser beam focus and laser line targeting direction, high power red laser line generator makes no mistake and no danger use perfectly.

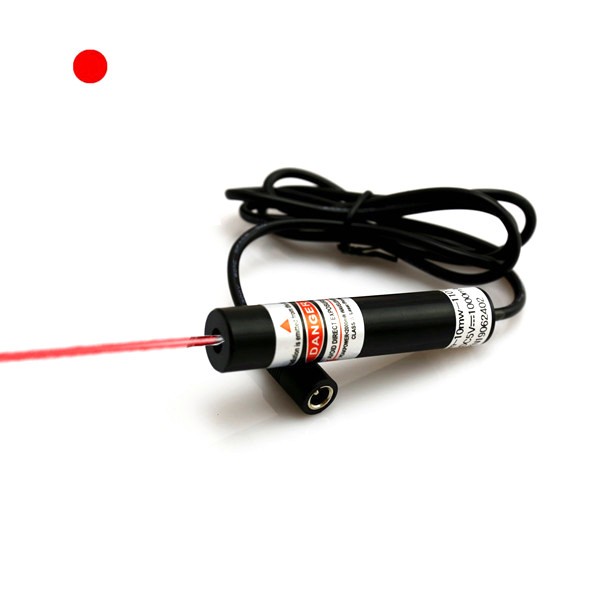

Easy Aligned 650nm Red Dot Laser Module

 In various working occasions where users are trying to make easy and quick dot alignment, not workable at all to rely on proper dot positioning work or any other manual labor force input, it should be a good conversion for users to make use of a 650nm red dot laser module. It projects moderate brightness red laser light directly from 650nm red laser diode. When it is making perfect use of cooling system and qualified optic lens inside durable aluminum alloy housing tube, this dot laser alignment is workable with excellent thermal emitting and highly stable red dot projection in continuous use.

This 650nm red dot laser module is always in need to work for quite long time, while still have to work with good laser beam stability in continuous use. It gets special use of import 650nm red laser diode as beam emitting source, not the same as a simple red laser pointer, it is getting at least 40% improvement of laser beam stability in use. When it gets wide range output power of 5mW to 100mW, only after getting good configuration with an external AC/DC adapter, 650nm red dot laser is not only leaving enough space for inner cooling system, but also keeping work with highly stable red dot projection in continuous use.

Applying with the best quality glass coated lens and quite strict laser beam stability tests up to 24 hours, 650nm red dot laser module always keeps work with high transmittance red laser beam emission and no decay light dot measurement in continuous use. This red dot laser passes through a series of strict tests, including super rapid electric current adding test, alternative high and low temperature changing test and up to 24 hours aging preventing test, this dot laser alignment just achieves superior nice laser light cycling use and extremely clear red dot projection for various work distances and other formal lighting occasions.

Whatever kind of working surface it is pointing, 650nm red dot laser module is just working as an accessory part. The extending electric wires are not only allowing freely installed distance of 3 meters, but also assuring highly stable and reliable red alignment laser dot projection under any overheating and over current in continuous use. Any time high power red dot laser is selecting, it is not only working at great distance, but also generating powerful red laser light and thermal energy. Only after correct use of 650nm wavelength preventing laser safety goggles and correct installation onto any industrial machine or device, it makes no mistake and no danger dot alignment perfectly.

Constant Pointed 532nm Green Cross Line Laser Module

 In multiple industrial and high tech cross line alignment work fields, without any serious relying on manual cross line printing work, it is an efficient solution to make use of a 532nm green cross line laser module. When users are making continuous technical innovation of qualified optic lens and 532nm green DPSS laser tech, it is generating the most complex laser beam in type of two perpendicular lines with accurate 90 degrees. Whenever compact structure made cross laser alignment gets correct installation and adjustment of beam focus and cross line targeting direction, it achieves high level of accuracy and high speed cross line alignment onto all working surfaces.

This 532nm green cross line laser module makes good use of qualified glass coated lens. It ensures high transmittance green laser beam from laser beam aperture, which is also getting no appearance of laser light decay or dim in continuous use. Before its production into an industrial stabilized cross laser alignment, it gets freely selected fan angles of 10, 15 and 110 degree. When it gets different cross line length within 0.5 meter to 6 meters, only if it passes through basic measurement and experiment of technical data, it would be selecting with correct output power and fan angle, thus generating the most satisfied two perpendicular lines with accurate 90 degrees at various work distances.

In continuous green cross line alignment work, this 532nm green cross line laser module always gets quite special need of highly stable performance in continuous use. It gets wide range output power of 5mW to 100mW, after special use of durable aircraft used aluminum alloy housing tube and an external AC/DC adapter, this 532nm green cross laser leaves enough space reserving for inner tube cooling down and highly stable green cross line source generation under overheating and over current in continuous use.

With the assistance of laser alignment mounting bracket and special use of electric wires extension, within the maximum installed distance of 3 meters, 532nm green cross line laser module enables the most convenient cross line projection for all application fields. When it is operating with high power up to 50mW to 100mW, besides its use for great distance, it is also generating serious thermal energy hurt to human eyes. Under high attention to thermal energy hurt to human eyes and proper wearing of laser safety glasses, this industrial stabilized alignment laser achieves highly secured and quick response cross line generation in all occasions perfectly.

Long Time Lasting 520nm Green Line Laser Module

 Whenever 520nm green line laser module is applying for any industrial and high tech line alignment work fields, it is not workable at all to only adopt quite similar line printing or line drawing work. However, after constant technical innovation of 520nm forest green laser diode tech and qualified optic lens with different fan angle, it is able to work extremely intense and powerful forest green laser beam emission, and highly clear forest green line alignment at various work distances. Any time compact structure made green laser line generator gets correct installation and adjustment, it just achieves highly precise and quick response line alignment in all occasions.

This 520nm green line laser module makes excellent use of import 520nm green laser diode as beam emitting source. It is not only used for temporary positioning work, but requiring to work with highly stable forest green line alignment in continuous use. It gets wide range output power of 5mW to 50mW, besides its basic use of inner cooling system, it is also getting different size tube diameter. After correct design with 16mm and 26mm diameter aluminum alloy housing tube, only if it gets excellent thermal emitting, this forest green laser line generator achieves highly stable and reliable forest green reference line projection onto different work surfaces.

Under high attention to highly precise and fine line alignment onto multiple targeting surfaces, 520nm green line laser module employs the best quality separate crystal lens. It projects non Gaussian distribution forest green laser beam, and highly uniform forest green line up to 85%. Whatever kind of working surface it is pointing, green laser line generator is available with the same brightness from middle part towards both ends, thus always assuring the highest level of accuracy line indication at various work distance and all lighting occasions.

According to basic measurement and experiment of technical data, 520nm green line laser module just gets correct selection of output power and fan angle. At the same time, every time this compact size laser gets proper adjustment of laser beam focus, it achieves desired alignment laser line thickness and no mistake line alignment onto all working surfaces. Whenever high power green laser is selecting up to 30mW to 50mW, after high attention to any thermal energy hurt to human eyes and correct wearing of laser safety glasses, it obtains no mistake and no danger line alignment in all application fields perfectly.

Wide Fan Angles Pro Red Cross Laser Alignment

 In any working occasion where users are trying to make extremely clear cross line projection, either it is pointing at close distance or long distance, it is always a quite complex job to get ideal cross line aligning accuracy. However, after continuous technical innovation of pro red cross laser alignment, it is not only generating the purest red laser light from laser beam aperture, but also assuring two perpendicular lines with accurate 90 degrees. Any time compact structure made 635nm red laser module gets correct installation and adjustment, unless it is pointing under sunlight, it makes satisfied red cross line source generation for all work distances and other high lighting occasions.

This pro red cross laser alignment makes excellent use of import 635nm red laser diode. It is requiring to make highly stable and clear red cross line source continuously. From the beginning design, it is always making quite strict beam stability tests, including super rapid electric current adding test, alternative high and low temperature changing test and up to 24 hours aging preventing tests. After operation with import 635nm red laser diode, this cross line laser module is achieving at least 40% improvement of laser beam stability. Under continuous red cross line source projection, it is achieving excellent laser light cycling use and extremely stable performance within constant use of 8 to 10 hours per day.

On basis of quite special use of glass coated lens, after quite special use of glass window in front of laser beam aperture, this pro red cross laser alignment is able to work with high transmittance red laser beam emission and highly clear two perpendicular lines with accurate 90 degrees. Available with different fan angles of 10, 15 and 110 degree, it is generating different dimension red cross line length within 0.5 meter to 6 meters. The real red cross line fineness is only 1mm to 2mm at about 2 meters work distance from beam aperture to targeting surface.

Anytime pro red cross laser alignment is operating as an accessory part, with the assistance of laser alignment mounting bracket and extending electric wires extension, it is assuring the most convenient installation distance of 3 meters. The generated red cross line laser source is easy to reach any targeting surface, not affecting by those of hard reaching, long distance, and other complex working environments etc. Whenever alignment laser is operating with high power up to 50mW to 100mW, only after proper wearing of laser safety goggles and proper adjustment of laser beam focus, it makes sure of highly precise and quick cross line generation in all application fields effectively.

Quick Measured 650nm Uniform Beam Red Laser Line Generator

 Once high precision line alignment is processing at various work distance, including those of quite hard reaching places, it would be very nice choice to make good use of a 650nm red laser line generator. It is making excellent use of import 650nm red laser diode tech and qualified separate crystal lens with wide fan angles, this 650nm red laser module is able to work with extremely intense red laser beam emission at several miles, and highly clear red reference line source at various work distances effectively.

When 650nm red laser line generator gets easy connects with an external AC/DC adapter, it is just leaving the largest space for inner tube cooling down, but also keeps work with intense red laser beam emission and highly clear red line projection at various work distances. In various red laser line alignment work, within wide range electric current of 100V to 240V, 650nm red laser module is applying for various working environments, but also workable with highly clear red reference line projection at various work distances and other formal lighting occasions. For the most important of all, whatever kind of output power it is selecting, the extending electric wires not only allow freely installed distance of 3 meters, but also achieving quite stable red laser line projection under overheating and over current in continuous use.

Under quite special use of a separate crystal lens, this 650nm red laser line generator is getting the best qualified red laser light source from beam aperture. It generates non Gaussian distribution red laser beam from beam aperture, and projecting a highly bright red reference line from middle part towards both ends. The genuine red laser line alignment gets the best result at great distance. Besides basic measurement and experiment of technical data, only if this 650nm red laser module gets correct output power and fan angle, it achieves highly precise and quick line indication onto any vertical or horizontal surface immediately.

Whenever users are making simple screw of adjustable focus optic lens, this 650nm red laser line generator enables immediate red laser light focusing and extremely fine red line indication onto various work distances. With the assistance of a laser alignment mounting bracket and extending electric wires for both alignment laser and DC power supply, red reference line is easy to reach any vertical or horizontal surface. Whenever high power red line laser is selecting up to 50mW to 100mW, only after high attention to thermal energy hurt to human eyes and proper wearing of laser safety goggles, it achieves easy and quick line alignment for all industrial and high tech measuring fields.

APC Driving Circuit 980nm Infrared Line Laser Alignment

 Whenever users are not able to make clear enough line projection under night vision, not helpful at all to only adopt visible laser devices, it is just a major trend for users to advanced use of a long wavelength made 980nm infrared line laser alignment. It generates invisible infrared laser beam from beam aperture. It is making the best use of import 980nm infrared laser diode and qualified optic lens with different fan angles, this infrared laser module is always workable with highly clear and fine IR line generation in distance. In occasion that compact structure made IR laser gets proper installation and adjustment of both beam focus and IR line fineness, it achieves high precision IR line emission at great distance effectively.

This 980nm infrared line laser alignment is performing differently from any other visible laser devices. It employs long wavelength made 980nm infrared laser diode within 100mW to 500mW, which is working with high photoelectric ability infrared laser light emission. It always generates extremely powerful infrared laser light from beam aperture, thus making highly clear IR line projection as long as 100 to 1000 meters. Under condition that IR laser line generator gets enough space leaving for inner metal heat sink cooling system inside durable aluminum alloy housing tube. It achieves superior nice thermal conductivity and extremely stable IR line alignment within wide range operating temperature as well.

In multiple night vision line measuring work fields, such as military targeting, laser medical therapy, infrared laser sight etc, 980nm infrared line laser alignment would have to generate different IR line length and fineness. It employs the most qualified glass coated lens or separate crystal lens. This infrared laser module projects Gaussian beam or non Gaussian distribution infrared laser beam from beam aperture. Available with wide fan angles of 10 degree to 110 degree, infrared laser line is achieving different line lengths. When it is selecting correct output power and fan angle, it just makes sure of extremely fine and straight IR line alignment.

When users are making quite easy screw of adjustable focus optic lens, 980nm infrared laser line generator enables immediate infrared laser light concentration, and extremely clear IR line indication. It is passing through quite strict laser beam stability tests and advanced use of APC, ACC driving circuit board. The genuine alignment laser line projection is preventing increasing temperature and serious electric current impact, which is achieving high stability and long lifetime in proper use. Whatever kind of output power it is selecting, only according to high attention to laser safety issue and correct wearing of infrared laser safety goggles, it achieves easy and clear measurement perfectly.

Precisely Aligned 635nm Glass Lens Red Laser Diode Module

 When users are trying to make highly clear dot alignment, even though it is pointing onto hard reaching or other complex working environments, it should be quite hard job for users until selecting a quite professional dot measuring tool correctly. On basis of advanced use of 635nm red laser diode module and special use of inner thermal emitting system, it is able to work with high intensity and high purity red laser light emission from beam aperture. Any time compact structure made red dot laser gets proper installation, adjustment to correct position, it makes highly clear, and quick dot measurement onto multiple targeting surfaces effectively.

The projecting red laser beam and red dot projection from 635nm red laser diode module is similar with a 635nm red laser pointer. It is in need to make continuous red reference dot projection from laser beam aperture. From the very beginning design of this red dot laser, it gets basic design of inner import 635nm red laser diode, metal heat sink cooling system inside durable aircraft used aluminum alloy housing tube. When it gets superior nice thermal conductivity, within wide range operating temperature within -10 degree to 45 degree Celsius, it is able to work with highly stable red laser dot projection continuously.

Under quite special use of a glass window in front of laser beam aperture, the genuine operation with 635nm red laser diode module is preventing any dust or moisture, including rain, water or fog etc. According to its special use of glass coated lens, either it is pointing at close distance or long distance, this dot laser alignment is keeping work with high transmittance red laser light emission and highly clear dot projection. Usually it maintains good laser light cycling use and no appearance of laser light decay or blur in constant use.

Any time 635nm red laser diode module is operating as an accessory part, on basis of extending electric wires and special use of a laser alignment mounting bracket, it enables the maximum installed distance of 3 meters and convenient red reference dot projection at various work distances. It is able to make quite easy screw of adjustable focus optics, whenever the most powerful intense red laser light is concentration, this alignment laser achieves the most precise dot measurement in use. Under operation with a high power red laser up to 50mW to 100mW, besides its operation for long distance and high lighting, users should also pay attention to thermal energy hurt and wear proper laser safety goggles until achieving safe and free dot alignment.

Review of 980nm Glass Lens Infrared Cross Laser Alignment

 Whenever cross line projection is processing under night vision, any visible laser device or mechanical cross line measuring tool is not workable at all. However, it is never an end for laser tech engineer to develop a quite practically used device of a 980nm infrared cross laser alignment. It is making advanced use of import 980nm infrared laser diode and qualified glass coated lens with different fan angles, after quite easy use of an external AC/DC adapter, this IR cross line laser module is projecting two perpendicular lines with accurate 90 degrees at various work distances.

This 980nm infrared cross laser alignment employs import 980nm infrared laser diode as beam emitting source. It is getting special use of highly stable IR cross line projection continuously. As a result, it should be designing different from a simple infrared laser pointer. Within wide range output power of 100mW to 500mW, infrared laser module is being made with 16mm and 26mm diameter aluminum alloy housing tube. Whenever it gets sufficient space leaving for tube cooling down, it just achieves increasing beam stability and highly stable infrared cross line laser source in distance. At the same time, after its proper installation, under special occasion of mechanical moving or shocking, it is still stable to work with stable performance in continuous use.

On basis of the most qualified glass coated lens with different fan angles, 980nm infrared cross laser alignment achieves different dimension IR cross line at various work distances. It keeps work with high linear quality and highly straight IR cross line source generation from laser beam aperture. Every time 980nm infrared laser module is available on the market, it is also passing through quite strict laser beam stability tests up to 24 hours. Under continuous IR cross line projection within 8 to 10 hours, after efficient thermal emitting, it just keeps work with good laser light cycling use and extremely stable IR cross line alignment.

Under multiple night vision fields, 808nm infrared cross laser alignment enables the most convenient use with the assistance of laser alignment mounting bracket. It is allowing freely installed distance within 3 meters, which is also making noncontact and no barrier IR cross line generation t great distance. According to quite easy screw of adjustable focus optics and IR cross line targeting direction within three dimensions, this alignment laser achieves high precision measurement. In addition, every time users are aware of IR laser radiation and reflection, after correct wearing of infrared laser safety goggles, it just makes secured and free use permanently.

Non Gaussian Beam 635nm Red Line Laser Module

Under operation of the most precise and accurate line alignment, either it is pointing at close distance or long distance, it is always a very nice experience to make use of a 635nm red line laser module. When it makes the best use of import 635nm red laser diode and qualified separate crystal lens, after very easy use of an external DC power supply, it is working with continuous red laser beam emission and highly clear line alignment onto various targeting surfaces. Only after correct use of output power and fan angle, compact structure made laser line generator makes sure of easy and immediate line generation onto all surfaces.

This non Gaussian beam 635nm red line laser module makes good use of import 635nm red laser diode as beam emitting source. It is generating pure and bright red laser beam directly from 635nm red laser diode. At the same time, owing to its low laser beam divergence of less than 1mard and quite special laser beam mode of Tem00, it is keeping work with highly fine red line projection in use. At the same time, according to quite easy screw of adjustable focus optics, this laser line generator enables high speed red laser light focusing and extremely fine red reference line projection in distance.
Owing to the most special use of separate crystal lens, this 635nm red line laser module is not only working for close distance, but also showing superiority at great distance. It keeps work with non Gaussian distribution red laser beam, and highly bright red laser line from middle part towards both ends. Either red laser line alignment is processing for long distance or high lighting, it gets no appearance of laser light decay and the clearest line positioning results in continuous use.
Whenever 635nm red line laser module is operating as an accessory part, within the maximum installation distance of 3 meters, it makes easy and quick line generation onto any machine or device. In addition, with the assistance of laser alignment mounting bracket, noncontact red alignment laser line is also making convenient line generation onto any vertical or horizontal surface, not affecting by long distance, high height and other hard reaching places. Any time users are aware of powerful red laser radiation and thermal hurt to human eyes, users should wear correct laser safety goggles and adjust red laser line direction correctly, this red line laser achieves easy and clear line alignment in all occasions perfectly.

Glass Coated Lens 532nm 100mW Green Laser Line Generator

Without serious relying on any manual line drawing or line drawing works, after efficient use of a 532nm 100mW green laser line generator, it would be much easy and quick line alignment work onto multiple targeting surfaces. When it makes the most advanced use of 532nm green DPSS laser tech and gets the lowest laser beam divergence of less than 1mard, this Class IIIb green laser module is workable with extremely fine and straight green reference line projection at great distance. On condition that compact structure made green laser gets proper installation and adjustment to correct position, it makes sure of high precision and quick response line generation onto all targeting surfaces effectively.

This 532nm 100mW green laser line generator is trying to make continuous line alignment onto various working surfaces. After its adoption of AC/DC adapter, accepting wide range electric current of 100V to 240V, it is not only workable with intense and continuous green laser beam from beam aperture, but also projecting highly fine green reference line onto various targeting surfaces. When it is generating powerful green laser light and thermal energy from laser beam aperture, however, the extending electric wires not only allow freely installed distance of 3 meters, but also keeping work with highly stable and reliable green line projection under any overheating and over current etc.
When line alignment is processing for various working environments, it should have to generate different length and fineness line projection onto multiple working surfaces. This 100mW green laser line generator employs the most qualified optic lens. Not the same as formal plastic coated lens, without any appearance of laser light decay or dim, it is generating high linear quality and highly straight green laser line in use. It gets low divergence green laser beam from beam aperture. Usually green line fineness is only 0.3mm at 10cm work distance, and 1mm to 2mm fineness at about 2 meters work distances.
With the assistance of easy adjustment of laser beam focus, 100mW green laser line generator enables immediate green laser light concentration and extremely fine green line projection in distance. Any thermal energy projection from beam aperture might cause serious hurt to human eyes. In continuous green alignment laser line projection, it is key issue to wear laser safety glasses and install it onto correct machine or device, it achieves the most precise and the most secured line alignment onto all working surfaces.

Review of 100mW-500mW 980nm Infrared Cross Laser Alignment

Unless the adoption of any manual cross line projecting work, it would be much complex job to get ideal cross line aligning accuracy before selecting a professional measuring tool correctly. After continuous technical innovation of a long wavelength made 980nm infrared cross laser alignment, equipped with import 980nm infrared laser diode and qualified glass coated lens with different fan angles, it is forming into a real and practically used IR cross line generation for all night vision applications. This 980nm infrared laser module should just be installed onto any night vision device, after proper adjustment of IR cross line targeting direction and cross line fineness, it assures quite satisfied IR cross line alignment effectively.

This 980nm infrared cross laser alignment employs import 980nm infrared laser module. Comparing with any simple laser pointer or laser line aligning tool, it is projecting the most complex laser beam in type of two perpendicular lines with accurate 90 degrees. According to basic use of inner glass coated lens with different fan angles of 10, 15 and 110 degree, it this IR cross line laser module keeps work with high linear quality and highly fine IR cross line source in use. Whenever it is available on the market, it has passed through quite strict laser beam stability tests up to 24 hours. On condition that the genuine IR cross line projection is processing within 8 to 10 hours and operating by skilled users, it is always maintaining good laser light cycling use and highly clear measurement constantly.
Owing to quite easy use of an external DC input power supply, accepting wide range electric current of 100V to 240V, 980nm infrared cross laser alignment enables highly intense infrared laser light emission and highly clear IR cross line source generation. Usually the special extending electric wires getting featured protection of infrared laser module from overheating and over current, but also allowing the maximum installation distance of 3 meters. Noncontact infrared cross line laser source is always easy to reach any targeting surface, but also making sure of clear and no decay light measurement as long as 100 to 1000 meters.
Whatever kind of output power it is selecting, 980nm infrared cross laser alignment gets the most special design of APC, ACC driving circuit board. Within 100mW to 500mW, even though there is increasing temperature and serious electric current impact from laser beam aperture, however, this alignment laser still makes perfect protection of itself from burning out or damage. Within daily continuous IR cross line projection of 8 to 10 hours, after high attention to powerful laser thermal hurt and corrects wearing of laser safety goggles, it achieves safe and quick response IR cross line projection effectively.

Uniform Beam Distribution 808nm Infrared Line Laser Module

In special occasion where users are trying to make high level of accuracy line alignment under night vision, any simple line drawing work with a simple manual line drawing tool or visible laser line alignment tool cannot be helpful at all. After continuous technical innovation on 808nm infrared laser diode and basic equipment with night vision device, it is making high efficiency infrared laser light conversion and extremely clear infrared laser line alignment. When 808nm infrared laser alignment gets easy selection of output power and fan angle, after correct installation and adjustment to correct position, it assures highly fine IR line alignment in distance effectively.

This 808nm infrared line laser module gets unique use of separate crystal lens. Whatever kind of working surface it is pointing, it is assuring non Gaussian distribution infrared laser beam emission from laser beam aperture. It employs import 808nm infrared laser diode as beam emitting source. When it gets wide range output power up to 100mW to 500mW, especially in occasion of IR line alignment at quite long work distance, it just shows its superiority. Infrared alignment laser line keeps the same brightness from middle part towards both ends, thus which is able to make the clearest IR line alignment as long as 100 to 1000 meters.
On basis of the most durable structure of durable aircraft used aluminum alloy housing tube, configured with inner metal heat sink cooling system, 808nm infrared line laser module is assuring stable and reliable IR line alignment within wide range operating temperature and other harsh working environments as well. Either it is adopting 16mm or 26mm diameter tube, owing to special use of an external DC input power supply, this infrared laser line generator always gets efficient thermal emitting and extremely stable IR line alignment, including harsh working occasions of mechanical shocking or calibration etc.
On basis of APC, ACC driving circuit board, not worrying about of laser tube burning out or damage, 808nm infrared line laser module keeps work with constant output power and electric current supply. Within daily constant IR alignment laser line targeting within 8 to 10 hours, after enough time leaving for laser tube cooling down, it is assuring excellent thermal emitting and increasing stability IR line alignment constantly. Whenever users are paying special attention to IR laser radiation and reflection, after correct wearing of infrared laser safety goggles and avoiding eye exposure to laser beam aperture, this infrared laser alignment achieves stable and safe measurement in all occasions.

Highly Fine 50mW 515nm Green Laser Line Generator

If users are not able to make easy and clear enough line alignment at much longer work distance, especially in occasion of working places out of hand reaching, it should not be an kidding work until selecting a quite professional line aligning tool, such as a 50mW 515nm green laser line generator. It is getting a bit shorter wavelength than 532nm green DPSS laser. On basis of its direct laser light emission from 515nm green laser diode, after special use of inner thermal emitting system inside durable metal housing tube and qualified optic lens with different fan angles, it is just effective enough to gain easy and highly clear line generation onto multiple surfaces effectively.

After quite easy use of an external DC input power supply, instead of the use of simple alkaline battery power source, 50mW 515nm green laser line generator projects continuous forest green laser beam and forest green laser line from laser beam aperture. The AC/DC adapter accepts wide range electric current of 100V to 240V, applying in multiple application fields, 515nm green laser module is keeping work easily in various working occasions. In addition, usually within the maximum installation distance of 3 meters, compact structure made green line laser enables convenient installation onto any industrial machine or device, and generates stable green laser line source under any harsh occasion, such as overheating and over current etc.
This forest green beam emitted 50mW 515nm green laser line generator is requiring to generate highly clear and fine line source onto multiple surfaces. In order to avoid any possibility of laser light decay or blur, 50mW 515nm green laser line generator employs qualified glass coated lens or separate crystal lens. It generates high transmittance forest green laser beam from 50mW 515nm green laser diode directly. In addition, available with wide range fan angles of 10 degree to 110 degree, green alignment laser line is achieving various line lengths onto multiple surfaces and extremely clear line indication within the maximum work distance of 25 meters.
After quite easy mounting of 50mW 515nm green laser line generator onto any industrial machine or device, even though some of working place is not easy to reach, noncontact green alignment laser line is always easy to reach targeting surface. At the same time, after quite easy screw of adjustable focus optics, after immediate green laser light concentration, it will achieve the most precise line positioning result in multiple application fields. When users are paying high attention to thermal hurt from powerful green laser radiation, only after correct wearing of laser safety glasses, it just assures constant and secured line alignment constantly.

High Power 635nm Red Laser Diode Module Review

What is the best solution to make highly clear and accurate dot alignment in great distance? Not workable at all to only adopt formal output power made laser pointer or low power laser dot measuring tool, it is becoming a major trend for users to select high power 635nm red laser diode module. It is generating the most powerful red laser light directly from 635nm red laser diode up to 200mW. This high power red dot laser generates extremely intense and clear red laser beam at several miles far away. According to special use of separate cooling system and proper installation onto desired machine or device, it just gets highly clear and accurate dot generation at great distance effectively.

The special use of separate cooling system, such as a metal heat sink cooling, which has just left the largest inner space for high power 635nm red laser diode module as its thermal emitting system. Configured with highly durable aircraft used aluminum alloy housing tube, whatever kind of working surface it is pointing or no matter how long it is lasting for continuous dot alignment work, red dot laser gets the best thermal conductivity and extremely stable red reference dot projection in continuous use. When it is operating as an accessory part, after proper installation onto desired machine or device, it is keeping work with highly stable performance under any mechanical moving or shocking at all.
When high power 635nm red laser diode module employs import 635nm red laser diode as its beam emitting source, designed with qualified glass coated lens, it keeps work with high transmittance red laser light emission and highly clear dot measurement at great distance. Owing to its high purity red laser light emission and quite low laser beam divergence, it is just keeping work with compact size red reference dot projection under high lighting as well. Every time users are making quite easy screw of adjustable focus optics, high power alignment laser enables quick laser light focusing and the most precise dot alignment.
Under operation with the most important design part of APC, ACC driving circuit board, even though high power 635nm red laser diode module is generating powerful red laser light from beam aperture, however, it is getting no worrying about laser tube burning out or damage. The intelligent feedback system is protecting alignment laser from overheating and over current, achieving highly stable dot alignment and extremely long lifetime of more than 8,000 hours. At the same time, when users are aware of any thermal hurt to human eyes and wearing correct laser safety goggles, this high power red dot laser enables easy and safe measurement constantly.

Easy Positioning 650nm 50mW Red Dot Laser Module

In current industrial dot alignment works, including various industrial and high tech dot aligning work fields, it is always a quite nice experience to try laser diode tech applying 650nm 50mW red dot laser module. It is different from a quite simple and temporary dot positioning used red laser pointer device. When it makes great technical innovation of 650nm red laser diode tech, only if it gets basic equipment with inner thermal emitting system and qualified optic lens, this dot laser alignment tool is just workable with extremely intense red laser light emission and highly clear red reference dot projection in continuous use.

This 650nm 50mW red dot laser module enables quite easy use in any industrial dot measuring work. It is getting a bit longer wavelength than infrared lasers, thus it is just generating moderate brightness red laser light from inner laser diode directly. Owing to its high power up to 50mW, in order to get super strong industrial stabilization, it is adopting a bit larger size tube diameter of 26mm. The durable aircraft used aluminum alloy housing tube just contains enough time leaving for inner metal heat sink cooling system. When red laser alignment gets superior nice thermal conductivity, it is just keeping highly stable and reliable red reference dot projection in continuous use.
Whatever kind of working surface it is pointing, even though dot alignment is processing at quite long work distance, 650nm 50mW red dot laser module is keeping work with high transmittance red laser light emission in use. It is not simply used for temporary dot positioning work, but should have to work with highly stable dot alignment continuously. When it is passing through quite strict laser beam stability tests, including super rapid electric current adding test, alternative high and low temperature changing test and up to 24 hours aging preventing test, this dot laser alignment just achieves excellent laser light cycling use and extremely stable dot positioning result at quite long work distance and other formal lighting occasions.
Under quite easy design with AC/DC adapter and extending electric wires for both 650nm 50mW red dot laser module and DC power supply, it enables freely installed distance of 3 meters and quick red laser dot projection onto multiple targeting surfaces. When it is generating the most powerful red laser light and thermal energy, the special use of APC, ACC driving circuit board is preventing any possibility of alignment laser tube burning out or damage. Every time the genuine red laser dot alignment is processing within 8 to 10 hours, after high attention to laser safety issue and correct wear of laser safety goggles, it achieves highly secured and precise dot measurement continuously.

Increasing Accuracy Economy Red Line Laser Alignment

In any industrial and high tech line measuring work, any simple line drawing is not useful at all. In order to avoid mistake caused by manual operation and reduce serious relying on prior line positioning work, it should be efficient solution to make advanced use of Economy red line alignment. It is projecting intense red laser beam from 650nm red laser diode. When it is trying to make continuous line projection, it is not only getting basic use of inner thermal emitting system, but also getting advanced use of qualified optic lens with different fan angles.

This economy red line laser alignment gets excellent use of durable aircraft used aluminum alloy housing tube, even though it is operating under quite harsh working occasion, it is still keeping highly clear and stable red line projection. Employed by import 650nm red laser diode within 5mW to 100mW, after its design with 16mm or 26mm diameter, it is always getting quite larger space leaving for inner thermal emitting system. In continuous red reference line projection, this laser line generator just keeps work with excellent laser light cycling use and long lifetime in proper use.
Under advanced use of qualified glass coated lens or separate crystal lens, whatever kind of working surface it is pointing, economy red line laser alignment keeps work with high linear quality and straight red reference line projection onto all targeting surfaces. It is trying to make highly clear line projection for multiple application fields, such as laser cutting, drilling system, lumber machine, textile garment processing and other scientific research works etc. Whatever kind of working surface it is pointing, it is just a necessity to get basic learning of line length, line fineness and work distance, after correct selection of fan angle, this red laser module achieves highly precise line positioning result onto multiple targeting surfaces.
Any time economy red line laser alignment enables quite easy use, after special use of a laser alignment mounting bracket and extending electric wires extension, it is always making easy and convenient red reference line projection onto any vertical or horizontal surface. It is operating with noncontact and no barrier by any working environment. When high power alignment laser up to 50mW to 100mW is making line projection at quite long work distance, it is not only applying for clear line projection at great distance, but also generating powerful laser light and thermal hurt to human eyes. Users should pay special attention to thermal hurt to human eyes and wear correct laser safety goggles until achieving safe and clear measurement constantly.
