High Energy Concentrated 650nm Red Line Laser Module Review



When users are looking for a high energy concentrated laser light source for those of long distance and long distance precise line positioning works, not able to rely on any manual line drawing or printing work, it would be a much more efficient job for operators to apply a highly bright and intense beam emitted tool of a 650nm red line laser module. It applies an import 650nm red laser diode and a qualified optic lens with wide fan angles inside its durable metal housing tube. In those of industrial and high tech precise line positioning work fields, it always gets high energy Gaussian red laser beam emission, ultra high fineness red line projection, and achieves high level of accuracy, low energy consumption and low production cost red line indication for multiple precise machinery processing works conveniently.

After quite easy connects with an AC/DC adapter, accepting wide range electric current of 100V to 240V, this 650nm red line laser module is always applying for various working environments. Being made with a qualified semiconductor laser diode tech within wide range output power of 5mW to 100mW and high power up to 150mW to 500mW, the projected Gaussian red laser light has concentrated energy at the center and a ultra fine red reference line, the line width can be controlled within 0.5mm, thus this laser line generator is always suitable for scenes requiring micron-level precision. In addition, according to its basic use of a metal heat sink cooling system inside its durable anodized aluminum alloy housing tube, it is always applying for various working environments, covering wide range operating temperature, different humidity and other harsh working environments etc.

In practical precise line positioning work fields, 650nm red line laser module applies a qualified glass coated lens within 10 to 110 degree fan angles, cooperated with its low laser beam divergence of less than 1mrad fan angle, it generates ultra fine and straight red reference line with different line lengths in continuous use. It gets featured advantages of strong anti-interference, the center brightness is high, and it can still remain clearly visible in metal reflective and dusty environments, and is suitable for complex industrial working conditions. Available with different red reference line length within 0.5 meter to 6 meters, only according to correct use of output power and optic lens fan angle, this red laser line generator is able to make highly precise line alignment for multiple raw material processing works easily.

Usually 650nm red line laser module applies a compact tube diameter of 16mm, 18.9mm and 26mm design for different output power range, thus it allows quite easy integration with other processing machine or device, making sure of easy reaching, good direction and long time lasting red alignment laser line projection onto multiple working surfaces. It is applicable for those of large equipment or assembly line applications. Whenever it makes proper installation in positions such as robotic arms and machine tool guides, it is suitable for a variety of industrial equipment and bringing users a lot of convenience for all machinery processing works.

Unique Energy Distribution 532nm Green Laser Line Generator



What is an efficient job to make ultra clear and precise line indication at various work distances? In those of industrial and high tech precise line positioning work fields, on basis of the use of a 532nm green laser line generator, it is able to work with unique energy distribution characteristics, performs outstandingly in scenarios that require linear uniform illumination, complex pattern projection, or high-precision detection. Comparing with formal Gaussian beam emission made laser device, the genuine use of a uniform beam 532nm green laser module gets core competitiveness lies in uniformity, energy utilization, and scene adaptability. It is especially suitable for fields that have strict requirements on beam quality, such as industrial automation, three-dimensional imaging, and medical precision operations.

Cooperated with an AC/DC adapter with acceptation of 100V to 240V, the usual use of a 532nm green laser line generator is working well with constant green laser beam emission from a middle wavelength of 532nm green DPSS laser tech within wide range output power of 5mW to 200mW. For the most important of all, when high power laser module gets the special use of separate metal heat sink cooling system, it just gets even larger space leaving for tube cooling down, and ultra stable and reliable green reference line projection within long time lasting work time of 8 to 10 hours per day. It keeps work with up to 85% laser beam stability and no light decay or blur in continuous use.

Configured with a qualified separate crystal lens within 10 to 93 degree green fan angles and glass window in front of laser beam aperture, 532nm green laser line generator gets unique laser light in type of non Gaussian distribution green laser light emission at several miles far away. At the same time, owing to its low laser beam divergence of less than 1mard and special TEM00 laser beam mode, the projected green alignment laser line gets ultra high fineness of 0.3mm at 10cm, and 1mm to 2mm fineness at 2 meters work distance. Whenever it is pointing at ambient lighting occasion, a correct output power and optic lens fan angle made laser device still makes quite satisfied line positioning results easily.

With the advancement of optical design and manufacturing technology, cooperated with APC, ACC driving circuit board inside a high duration anodized aluminum alloy housing tube, the usual use of a separate crystal lens 532nm green laser line generator makes sure of constant green laser beam and green line projection, and still gets perfect protection of itself under overheating and over current impact as well. When this accessory part makes proper installation and integration with other machine or device, noncontact beam emitted alignment laser gets wider application extension in cutting edge fields, such as intelligent perception and quantum communication. On occasion that users are operating it with proper wearing of laser safety glasses, and avoiding eye exposure to beam aperture, it still brings users no danger, noncontact and no track line measurement in all working occasions effectively.

High Beam Stability Gaussian Beam 532nm Green Line Laser Module Review



What is the best job for users to make accurate and fine enough line generation? Either it is pointing at close or long distance, it would be a quite nice solution for users to operate a highly bright beam emitted tool, such as a 532nm green line laser module. It keeps work with highly fine and straight green reference line projection with various line lengths. In practical industrial or high tech precise machinery processing work fields, based on its proper installation or integration, and proper selection of output power and optic lens fan angle, the accessory part of a laser line generator always makes sure of ultra fine, clear and straight green reference line generation for all working fields conveniently.

The basic line indication work with a 532nm green line laser module should be processing for a quite long time, and working with other industrial machine or device. It applies an external AC/DC adapter as its electric power source, supporting it with wide range output power of 5mW to 100mW and high power up to 150mW to 200mW. It gets advanced use of an inner metal heat sink cooling system inside different dimension metal housing tube with 16mm, 18.9mm and 26mm diameter tube design. Whenever laser line generator gets larger space leaving for tube cooling down, after constant line generation within 8 to 10 hours per day, it still gets superior nice heat dissipation and ultra stable green reference line projection for multiple working occasions.

When a qualified green laser beam is emitted from the beam aperture, the usual use of a 532nm green line laser module with a glass coated lens is also generating high linear quality and highly straight green reference line projection within 0.5 meter to 6 meters length in use. It always gets quite low laser beam divergence of less than 1mrad, thus green reference line can maintain high collimation, high uniformity, clear edge. In addition, even though alignment laser line is pointing at long work distance, it still maintains high accuracy, high stability and long distance transmission in continuous use.

Any time Gaussian beam 532nm green line laser module gets constant electric power source supply, cooperated with APC, ACC driving circuit board inside its durable metal housing tube, it can maintain good power stability. The advanced electric current design and thermal control system just assure highly stable performance and low power fluctuation within quite small range under various ambient lighting conditions.

Applications:

Industrial manufacturing: In the fields of automotive parts manufacturing, electronic equipment production, green laser line generator is used for precise line positioning, alignment and calibration. It can ensure high-precision processing and assembly of parts. For example, in the assembly of mobile phone screens, it provides accurate positioning green reference line for the bonding process.

Construction: In the construction process of building wall masonry, ground paving, etc., the projected green alignment laser line can be used as a horizontal or vertical reference line to help construction workers ensure the flatness and verticality of the construction and improve the construction quality.

Education and scientific research: In teaching and scientific research activities such as physical experiments and optical demonstrations, green laser light is used as a visible light source to demonstrate optical phenomena such as light propagation, reflection, and refraction, helping students and researchers to better understand and study optical principles.

Industrial Stabilized Device of 650nm Red Laser Line Generator

On consideration of high level of accuracy and high stability line indication, it might be processing onto different working surfaces, thus it is becoming a major trend for laser tech engineers to develop a quite practically used device, such as a 650nm red laser line generator. When line alignment work is processing for all kinds of industrial and high tech machinery processing works, on consideration of its long time lasting and high stability line indication, it has been made with good thermal emitting and constant electric power source supply. When this ultra compact size tube made 650nm red laser module makes proper installation and integration onto other machine or equipment, it just enables easy reaching, good direction and high brightness line alignment and measurement onto various working surfaces.

The usual use of a 650nm red laser line generator would be processing for a quite long time, for the most important of all, it would have to work with high level of laser beam stability in continuous use. The genuine use of an import 650nm red laser diode gets wide range output power of 5mW to 100mW, and high power up to 150mW to 500mW. Further more, it has been made with a built-in metal heat sink cooling system inside a durable anodized aluminum alloy housing tube. When red line laser is operating within wide range operating temperature, and any other harsh working occasion, it is able to maintain its stable red line projection for both of long time and long lasting use. It also gets no effect by overheating and over current impact as well.

For the most important of all, in order to get different line lengths and line fineness at different work distances, this 650nm red laser line generator has just applies a qualified glass coated lens within 10 to 110 degree fan angles and adjustable focus optic lens in front of beam aperture. Any time it gets constant electric power source supply, without spending extra time on alkaline battery change, it makes sure of long time lasting and ultra stable red reference line projection within 0.5 meter to 6 meters line length in use.

Furthermore, owing to the special use of adjustable focus optic lens, every time 650nm red laser line generator gets high speed red laser light focusing, it also converts into increasing accuracy and brightness red line projection at even longer work distance and other higher lighting occasion as well. When it is operating with high power up to 50mW for longer time use, in order to avoid thermal energy hurt to eyes, this alignment laser should be properly use with 650nm wavelength preventing laser safety goggles, thus it makes easy, free and secured line projection for all working occasions conveniently.

Precisely Measured 650nm Red Line Laser Module For Garment Processing

When line indicating work is processing at a quite longer work distance than formal hand reach, even though it is full of challenge to get ideal line alignment with those of manual or mechanical line aligning tool, it would be a much more efficient solution to operate a high density beam emitted tool of a 650nm red line laser module. It keeps work with constant red laser beam emission from an inner laser diode at several miles far away. Usually it makes advanced use of external electric power source and proper use of output power and optic lens fan angle, either it is used for long time or long distance working occasion, this accessory part of a laser line generator is able to bring users quite satisfied line positioning results for all machinery processing works.

The basic use of a 650nm red line laser module has featured advantages of high degree of directionability and high accuracy, which can project a highly straight and fine red reference line onto different garment cloths. Owing to its low laser beam divergence fan angle, cooperated with a qualified glass coated lens within 10 to 110 degree fan angles, it is able to work with ultra clear and high fineness red reference line with various line lengths in continuous use. In addition, without the use of sunlight, the use of a high power red laser line generator up to 150mW to 500mW output power can also make quite satisfied line indication onto various garment cloths under high lighting and outdoor working environments.

Owing to the ultra high brightness and fine line indication, in practical garment processing works, this 650nm red line laser module can provide a precise benchmark for various line positioning and guiding tasks in garment processing, and helps to improve the production accuracy and quality consistency of garments. Owing to its high contrast on the materials such as fabrics, this red laser line generator can emit highly clearly seen red reference line in a workshop environments with complex lighting. As a result, this allows workers to easily identify and track the red laser line during operation, reduce visual fatigue and operation errors and improve work efficiency.

Genuine applications of 650nm red line laser module in garment making works:

Fabric layout positioning: The 650nm red laser can project a clear straight red line as the reference line for fabric layout. Workers place clothing samples along the laser line to so as to ensure that the spacing between the samples is uniform and neatly arranged, thereby improving the utilization rate of the fabric and reducing waste.

Cutting guidance: When cutting fabric, the straight line projected by the laser line generator can provide precise cutting path guidance for cutting equipment or workers. Whether using an electric cutting machine or manual cutting, the operator can cut according to the instructions of the red laser line to ensure that the cutting line is straight and accurate, avoid cutting deviations, and improve cutting quality, especially for some clothing parts that require straight cutting, such as trouser legs and sleeves.

Pattern positioning: For some garments that need to be printed or embroidered with specific patterns on the fabric, the Gaussian beam 650nm red line laser module can first project the outline or positioning line of the pattern on the fabric. Workers print or embroider the pattern according to the position of the alignment laser line, which can ensure the accurate and symmetrical position of the pattern and improve the consistency and aesthetics of the pattern.

Industrial Measurement Used 445nm Blue Laser Line Generator

In the practical industrial line measuring work fields, in order to assure clear and fine enough line measurement onto different raw material surfaces, on consideration of low production cost and high work efficiency, it has been a quite nice solution to operate a high density beam emitted device of a 445nm blue laser line generator. Connected with an external electric power source, unlike the use of any prior line drawing or printing work, it can provide accurate straight blue laser line reference, with small spot and clear lines, which can be accurate to millimeter or even micron level, and fulfill high level of accuracy line measurement for multiple raw material processing works effectively.

In practical line measuring work, 445nm blue laser line generator can be used for high precision industrial measurement, such as the aperture measurement of automobile engine cylinder block, and the size detection of precision mechanical parts etc. Being made with a short wavelength of 445nm, which forms a short contrast with the surface of the most industrial materials. It can clearly image with a ultra high fineness and high straightness blue laser line image in complex lighting environments, which is convenient for the measurement system so as to identify and process, and improve the measurement accuracy effectively.

Connected with an AC/DC adapter, this 445nm blue laser line generator using blue laser beam as the measurement medium, which does not directly contact the measured object, avoiding wear and deformation problems that may be caused by contact measurement. Being made with a qualified glass coated lens within 10 to 110 degree fan angles, together with an import 445nm blue laser diode within 50mW to 100mW and high power up to 150mW to 500mW, this blue line laser module is able to work with ultra clear and straight blue line projection.

When it gets different line length and line fineness at various work distances, it is especially suitable for measuring objects with deformable, soft or high precision surfaces, such as rubber products, optical lenses etc. This blue line laser module always makes constant projection of a complete straight blue line, and with high speed imaging and data processing system. It can quickly obtain a large amount of measurement data, realize real time measurement and online detection, and improve industrial production efficiency, such as rapid size screening of parts in automated production lines.

Cooperated with adjustable focus optic lens design, being made with different dimension tube design of 16mm, 18.9mm and 26mm diameter tube design, 445nm blue laser line generator enables quite easy installation and integration onto other machine or device. After its immediate blue laser light source concentration, after converts into ultra fine and bright blue reference line, it can be used for various precise line positioning work fields. It can be integrated with other measuring equipment so as to build a complex measurement system.

What Are Application and Features of 650nm Red Laser Diode Module?

Whatever kind of working surface users are in need of ultra clear and precise dot indication, even though it is pointing at a long distance or in a more complex environments, it should be a very nice job to operate a high density beam emitting tool of a 650nm red laser diode module. The wavelength of 650nm is in the red light region of visible light, with good visual recognition. Since human eyes are quite sensitive to red laser light, thus it can be clearly seen and observed of its laser light and light spot in real use.

Among all visible optical spectrum, 650nm red laser diode module projects high brightness output light spot. It applies a qualified import 650nm red laser diode and a qualified glass coated lens inside its durable housing tube. When it emits high transmittance and high density red laser beam, within wide range output power of 5mW to 100mW and high power range of 150mW to 500mW, it always enables ultra clear and bright red reference dot projection for close distance, formal inner room and high lighting working occasions as well.

The output light spot of 650nm red laser diode module has featured advantages of high brightness, which can be seen clearly even at a long distance or in a more complex working environments as well. It has good directivity, thus it can make quite accurate dot indication to the targeting position. Based on a qualified glass coated lens and adjustable focus optic lens in front of beam aperture, after its proper connects with 5V, 9V 1000mA DC power supply, this 650nm red dot laser enables immediate red laser light source concentration, and converts into increasing accuracy and brightness red dot alignment at longer distance and higher lighting occasion as well.

Being made with APC, ACC driving circuit board, whatever output power it is selected, this 650nm red laser diode module keeps work with constant red laser beam and red dot projection. The output power is stable, the fluctuation range is small, the beam quality is high, the focusing effect and collimation can be guaranteed, and it can work stably for a quite long time. Even though there is increasing temperature and serious electric current impact, however, when red dot laser makes proper operation by professionals and engineers, it still maintains ultra nice laser beam stability, and long serving lifetime in proper use.

Applications:

Industrial field: red laser dot is used for precise measurement and positioning in industrial production, such as horizontal and vertical positioning in construction projects, positioning and calibration of parts in mechanical manufacturing, and can also be used for object detection and counting on production lines.

Medical field: 650nm red laser light source can promote blood circulation in the eyes, increase cellular oxygen and nutrient supply, stimulate retinal nerve cell activity, and be used for myopia prevention and control and amblyopia treatment. It can can also be used for cosmetic treatments in dermatology, such as stimulating collagen proliferation and improving skin texture; can perform precise cutting, coagulation and other operations during surgery.

Indication field: It is a commonly used core component of laser pointers, which can indicate key points in teaching demonstrations and speech reports. It can provide accurate direction guidance in outdoor adventures and night lighting, and can also be used in gun aiming systems and holographic aiming systems to help quickly and accurately lock targets.

Entertainment field: in stage performances, light and shadow art and other activities, 650nm red laser diode module can bring a visual feast to the audience by changing different patterns and effects; it can also be used in some entertainment projects such as laser projection and laser shows.

Optical communication field: As one of the laser wavelengths in optical fiber communication, red laser dot alignment can achieve high-speed and stable data transmission and improve communication efficiency.

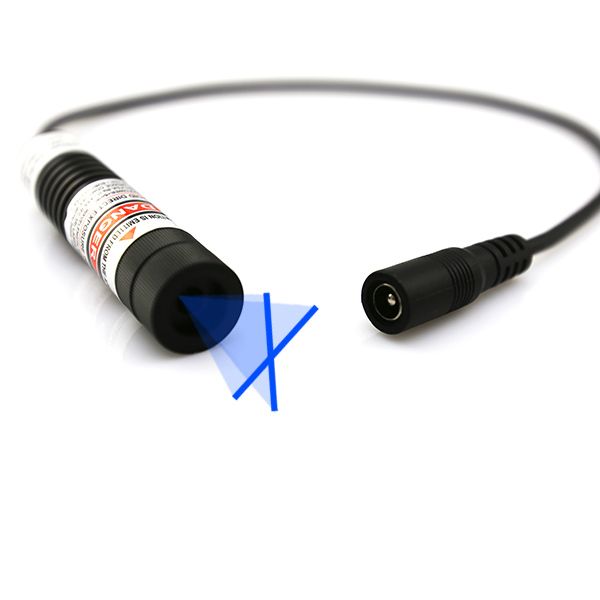

What is The Advantage of 445nm Blue Crosshair Laser Module in Industrial Field?

In any type of ultra clear and precise cross line measurement at a longer work distance than formal hand reaching, even though it is far more enough than formal hand reaching, it should be the best job to operate a high density beam emitting device of a 445nm blue crosshair laser module. It gets much short wavelength, thus it is able to work with high visibility and high brightness blue laser beam at long extending distances. Usually it applies a qualified optic lens and basic thermal emitting system inside its durable housing tube, this 445nm blue laser module enables quite easy carrying, operating and operation for various raw material processing works conveniently.

This 445nm blue crosshair laser module applies an import 445nm blue laser diode within 50mW to 100mW and high power range up to 150mW to 500mW. In order to make long time lasting cross line projection, it has been made with a metal heat sink cooling system inside its durable anodized aluminum alloy housing tube. For the most important of all, after configuration with APC, ACC driving circuit board, besides its operation for superior nice thermal emitting and thermal conductivity, this blue laser alignment tool also gets perfect protection of itself from overheating and over current impact in continuous use.

Without any effect by increasing temperature, after configuration with industrial device or equipment, 445nm blue crosshair laser module enables quite easy installation, quick long lasting blue vertical and horizontal lines generation in long time use. It also gets long serving lifetime of more than 8,000 hours in proper use. Even though it is used in bright light or dusty environments, it can be clearly seen, which is convenient for operators to observe and operate. Within the lowest time consumption and the lowest relying on any manual labor force input, this cross line laser module always makes ultra precise and bright cross line indication within controlled errors within a very small range.

According to quite special use of adjustable focus optic lens design, blue crosshair laser module enables highly concentrated blue laser light emission, and highly efficient conversion of increasing brightness and fineness blue vertical and horizontal lines generations at greater distance and higher lighting occasions. It is merely effected by harsh working environments, operating temperature, humidity and others etc.

What are industrial Applications of 445nm blue crosshair laser module?

Mechanical processing: In the process of turning, milling, drilling and other processing, it provides accurate blue cross line source for the positioning of tools and workpieces, ensures the position accuracy of processed holes, grooves, planes, etc., and improves the processing quality of parts.

Automobile manufacturing: When used for welding automobile bodies, blue cross lines helps workers to quickly and accurately align body parts, ensure the accuracy of welding positions, and improve the overall accuracy and strength of the body. On the automobile assembly line, it provides positioning references for the installation of interior parts and the assembly of chassis components to ensure that all components are installed in place.

Electronic manufacturing: In the production of circuit boards, 445nm blue crosshair laser module provides positioning for the cutting, drilling, and patching of printed circuit boards (PCBs), ensures the accurate installation position of electronic components, and improves the production quality and reliability of circuit boards. In the production of liquid crystal panels, it is used for positioning of processes such as cutting of glass substrates and attachment of polarizers.

Robot visual guidance: Provides visual references for robots, helps robots accurately identify and grasp objects, determine the operation position and direction, enables robots to work according to preset paths and actions, and improves the accuracy and efficiency of robot operations.

3D printing: During the 3D printing process, 445nm blue laser module assists in calibrating the flatness of the printing platform to ensure that the printing material is evenly laid; it can also be used to determine the position and direction of the printed model to improve the accuracy and quality of 3D printing.
